XG 85

Previous 1 / 1 Next

XG 85 SOPHOS XG FIREWALL


bX3-AHD16
Description
Introduction  XG 85 FIREWALL
Features
  1. Advanced H.264 format
  2. Industrial 16CH AHD DVR
  3. 16 x 720p @ 18fps per channel
  4. Remote configuration
  5. Remote firmware upgrade
  6. Max 2 pcs of 8TB SATA HDD
  7. Quick setup for easy and fast configuration
  8. Dual streaming
  9. Smart phone viewer for iPhone and Android
  10. Free DDNS

-
Model bX3-AHD16
Compression H.264(Main Profile)
Operating System Embedded Linux
OS Firmware Linux OS in Flash Memory
NSTC / PAL Selectable YES
Video Input 16CH Composite, 1.0Vp-p, 75ohm
Main Monitor Output 1 VGA, 1 HDMI, (Up to 1920 x 1080p)
Video Output 1 CVBS or 1 SPOT
Alarm Input 4
Alarm Output 1
USB Interface 2 (Front 1, Rear 1)
Search Date / Time / Calendar / Event
User Interface YES
External Storage N / A
NTP Server YES
GMT Time Zone YES
Auto DST YES
Recording Mode Continuous / Schedule / Motion / Sensor / Manual
Pre Alarm Recording Up to 30 sec
S.M.A.R.T. YES
PTZ Control YES, Half Duplex
Sequence YES
Max Recording Rate at CIF (FPS) 480 / 400 fps
Max Recording Rate at D1 (FPS) 480 / 400 fps
Max Recording Rate at 720 (FPS) 480 / 400 fps
Recording quality grade 5 LEVELS
Audio Input 2 CH Line Input
Audio Output 1 CH Line Output
Operating Temperature -5 Degree Celcius ~ 50 Degree Celcius
Storage Temperature -10 Degree Celcius ~ 50 Degree Celcius
Power Adapter DC 12V 4A
Power Consumption Max 24W
Agency Approval FCC / CE

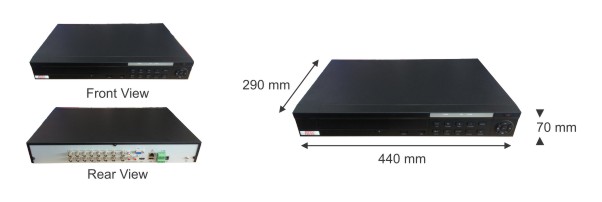

Dimension (WxDxH) 440mm x 290mm x 70mm
Preset Touring N / A
Multi Language YES
3G Communication iPhone / Android
Primary Storage 2ea HDD - Each max 8TB (Total 16TB)
Clip Copy Storage USB Stick / Networking
