BX6L-D001 UHD 4K LITE CCTV


BX6L-D001
Description
Introduction bX6L-D001
Features
  1. CMOS 5.0 Mega Pixel Camera
  2. 5MP Resolution
  3. Support DC12V
  4. 3.6mm Fixed Lens
  5. Support NTSC/PAL
  6. XVI/AHD/TVI/CVICVBS Video Output
  7. Auto Electronic Shutter (AES)
  8. Auto Gain Control (AGC)

-
Model bX6L-B001
Image Sensor CMOS 5.0 Mega Pixel
Lens 3.6mm
Effective Resolution 2550 x 1920
Resolution 5MP
Video Frame Rate 5MP@20fps; 1080P@ 60fps; 1280 x 960 @ 50fps; 1280 x 60fps
Minimum Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Auto Electronic Shutter 4/25s ~ 1/45,000s
Auto Gain Control Auto, Level 0-15
White Balance ATW / AWC-SET / Indoor / Outdoor / MANUAL
SN Ratio 50dB
IR Status Under 10 Lux by CDS
IR Power On CDS Auto Control
Video Output AHD
Power Supply 12VDC (+/-10%) / 120mA

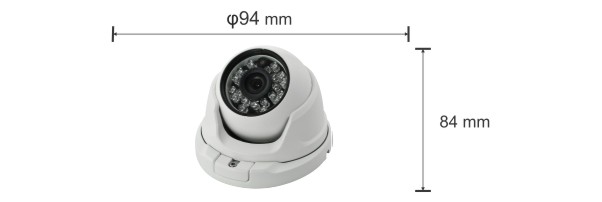

Dimension φ94mm x 84mm
Weight 100g
Storage Temperature -30 ~ +60 Degree Celcius
Operating Temperature -20 ~ +45 Degree Celcius
