bX6-IPC-001-D 8MP IPC 4K PRO CCTV


bX6-IPC-001-D
  • DESCRIPTION
  • SPECIFICATION
  • CONNECTION DIAGRAM
  • DIMENSION
  • DOWNLOAD
Description
Introduction 8MP Motorized Zoom Lens Network Dome Camera
Features
  1. Up to 4K high resolution
  2. H.265 / H.264 video formats
  3. POE @ DC 12V integration design
  4. 2.8 ~ 12mm motorized zoom lens
  5. Up to 30mm IR range
  6. Dual video streams
  7. 80dB Wide Dynamic Range
  8. 3D Digital Noise Reduction
  9. IP66 weather-proof protection
  10. Support IE, Chrome, Safari, Firefox
  11. Latest ONVIF V2.41 supported
  12. Browser plug-in free

-
Model bX6-IPC-001-D
Image Sensor 1/1.7" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F2.0), B/W: 0 Lux with IR
Lens 2.8 ~ 12mm motorized zoom lens
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 80dB
P & T Rotation TBD
Video Compression H.265 / H.264
Dual Streams Support
Max Resolution 3840 x 2160
Frame Rate 50Hz: 25fps(3840 x 2160, 3200 x 1800, 2688 x 1520, 1920 x 1080),
60Hz: 30fps(3840 x 2160, 3200 x 1800, 2688 x 1520, 1920 x 1080)
Image Setting WDR, Compression, Rate Mode, Saturation, Brightness, Contrast
ROI Codec Support, 4 regions
Alarm Trigger Motion Detection, Network Disconnect, IP Address Conflict
Standards ONVIF (PROFILE S, PROFILE G),CGI, RTSP, RTMP
Communication 1 RJ45 100M / 1000M Ethernet Port
On-board Storage Build-in Micro SD/SDHC/SDXC slot, up to 128GB
Alarm Interface 1 x Alarm I/O
Audio Interface 1 x Audio In
Operating Condition Temperature: -30 Degree Celcius ~ 60 Degree Celcius (-20 Degree Fahrenheit ~ 140 Degree Fahrenheit), Humidity: 95% or less (Non-Condensing)
Power Supply DC12V +/- 10%, POE (802.3af)
Power Consumption Max. 8W
IR Range Approx. 30 meters (100 feet)
Ingress Protection IP66

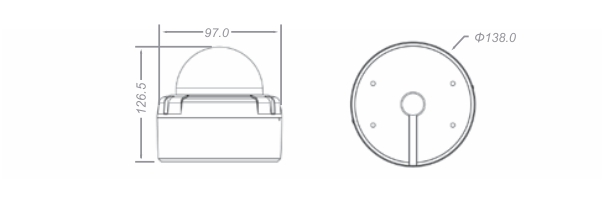

Dimensions 138mm x 126.5mm(5.4" x 5")
